Hello! The reliability of the inverter depends on the impact of thermal cycles on the power module. Is there a thermal cycle amplitude/quantity curve for XM3 power modules? Thank you!

Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • AustinC
    AustinC Wolfspeed Admin - Contributor Level 4
    Options

    Hi Egor,

    The images below illustrate the thermal cycling (thermal shock test) applied to the EAB450M12XM3 module during product qualification.

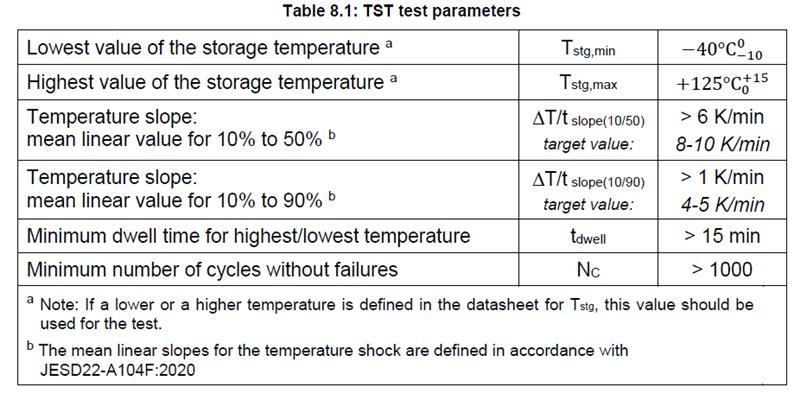

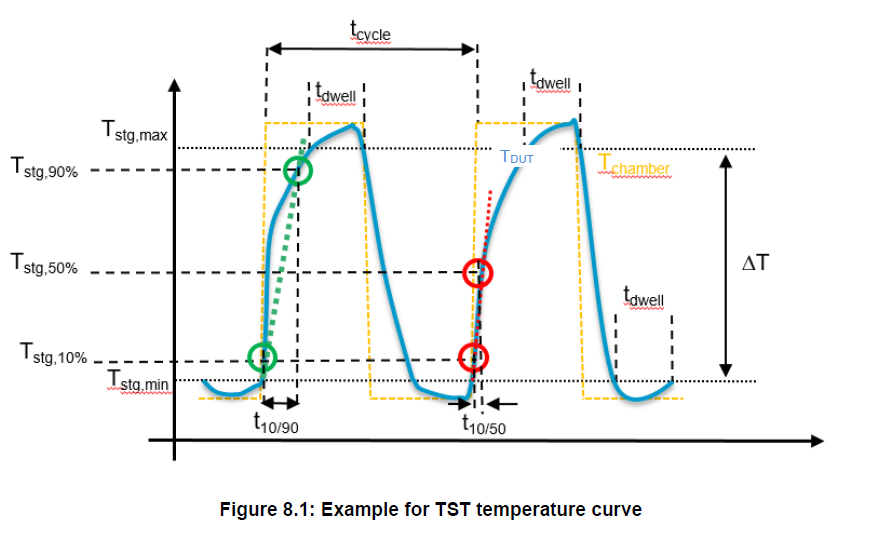

    Thermal Shock Test from AQG-324


    Best Regards,

    Austin C.
