CRD-25BDA6512N-K

Options
Stephen
Stephen Contributor Level 1
edited August 20 in Discrete Products

hello

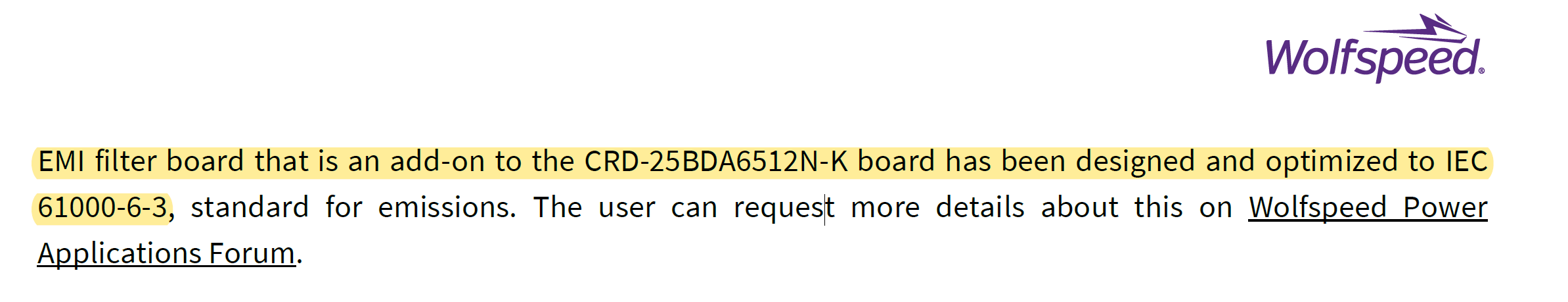

As shown in the figure, the CRD-25BDA6512N-K board includes an EMI filter board. Could you please provide detailed specifications for this filter board? Thank you.


Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • SGupta
    SGupta Wolfspeed Employee - Contributor Level 1
    Options

    Hello- Thanks for reaching out. Please find attached BOM and design files of the EMI Filter board. In addition, you can also check out our detailed app note on the EMI mitigation here.

    EMI Filter Board_CRD25BDA6512N-K.zip

  • TBhatia
    TBhatia Wolfspeed Admin - Contributor Level 5
    Options

    Hi, I hope that this answered your question. I will close this discussion for now but if you have a follow up question, please "Start a New Discussion" and we would be glad to support you further.
