Box size for one reel of E4M0060075U2-TR

Options
TXBorne
TXBorne Contributor Level 1
in Discrete Products

Where can I find reel and box dimensions for products like E4M0060075U2-TR?

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • AustinC
    AustinC Wolfspeed Admin - Contributor Level 4
    Options

    Hi TXBorne,

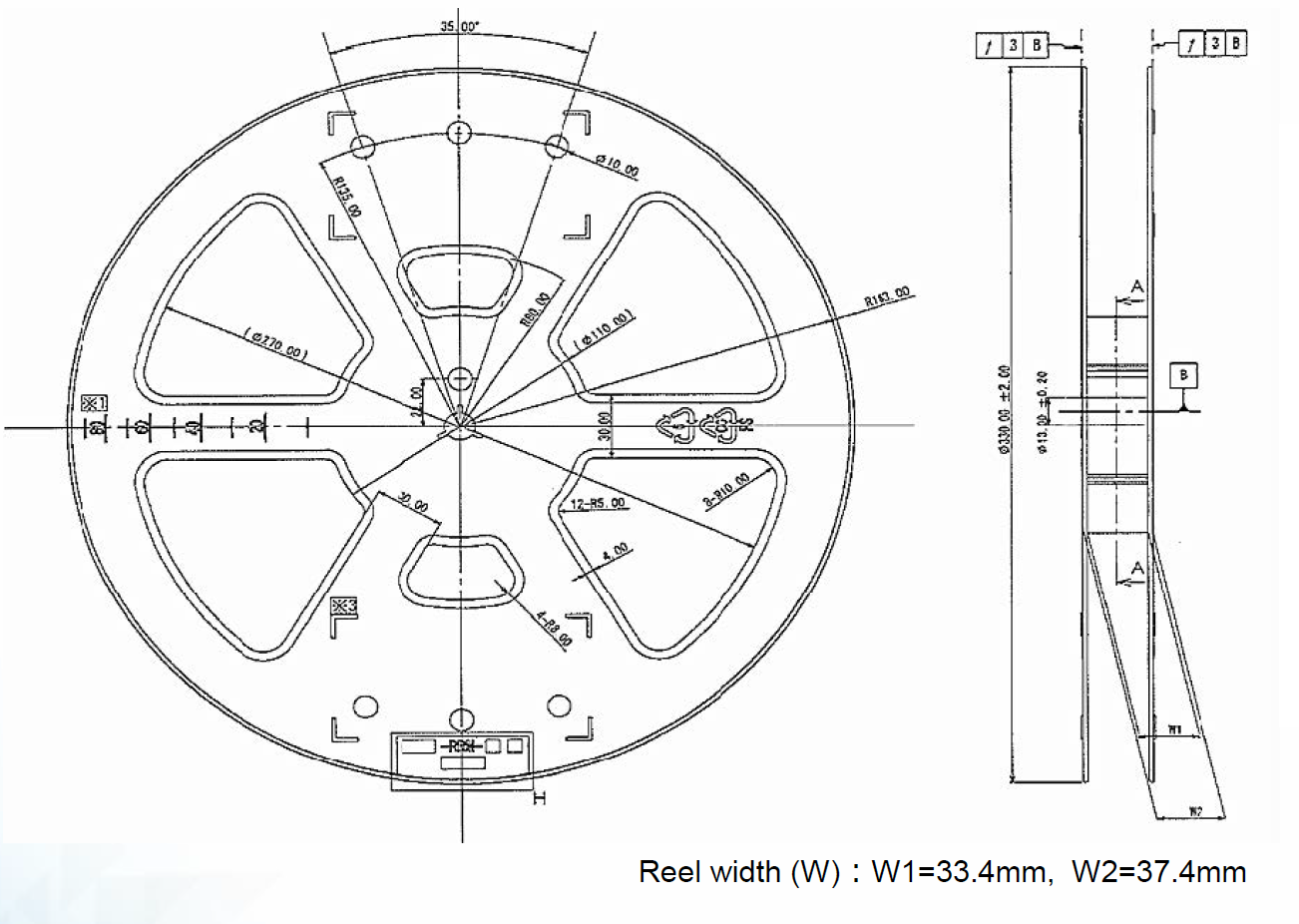

    Here are the reel dimensions:

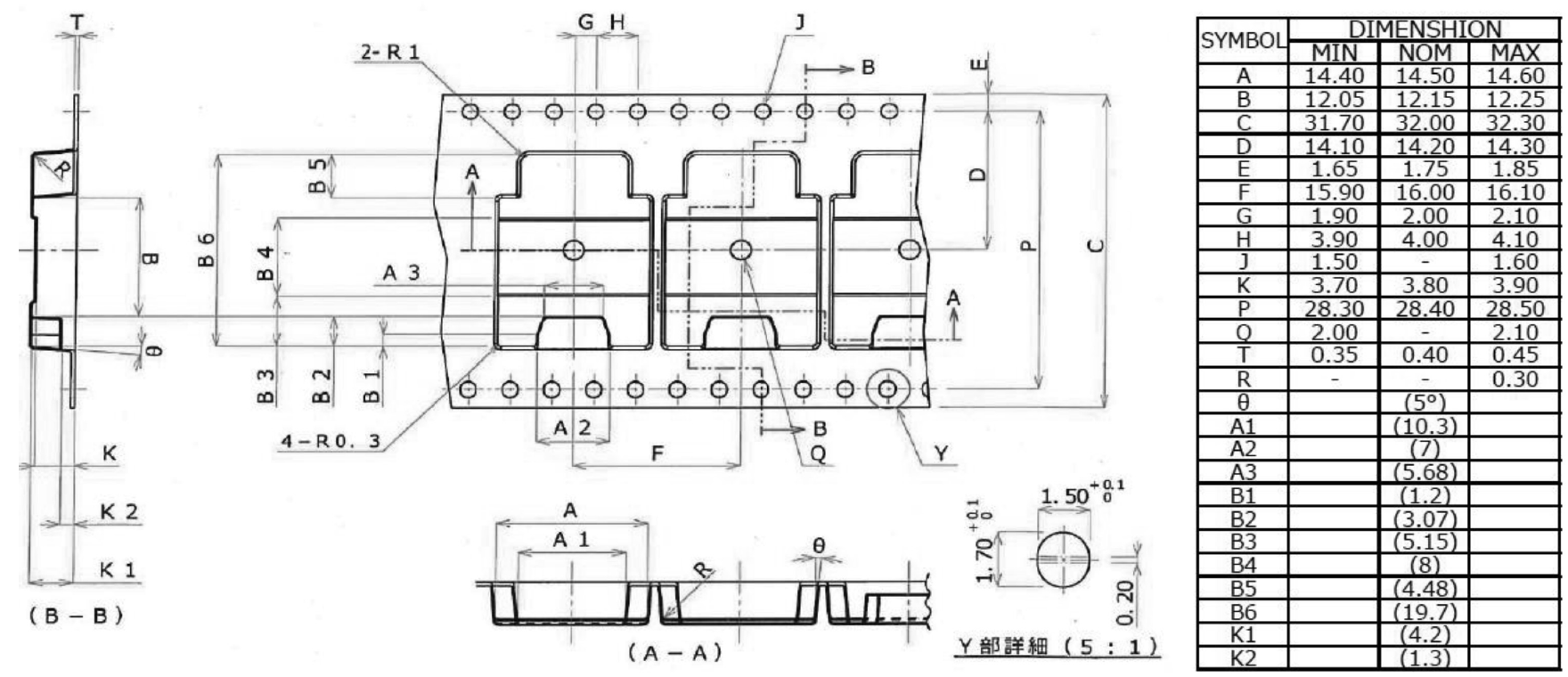

    Tape dimensions:


    Best Regards,

    Austin C.
