CRD300DA12E-XM3 Source Code and CAN Interface Softwares

AshrafSiddiquee

Dear Wolfspeed Support Team,

My name is Ashraf Siddiquee, and I am a Graduate Assistant at The University of Akron. We recently purchased the CRD300DA12E-XM3 Three-Phase Inverter. At the moment, we have only received the hardware and did not receive any of the related software or source code.

I would like to kindly request the following items:

• The Wolfspeed source code referenced in the XM3 Three Phase Inverter Reference Design User Guide
• The XM3 Inverter CAN Interface executable/software (e.g., XM3 Inverter CAN Interface.zip and any related files)
• Any related documentation or download links for firmware, software, and example projects
• Instructions for rebuilding or modifying the source code using Code Composer Studio

Additionally, we are planning to modify the firmware to integrate a TMR sensor using SPI communication. If you have any reference examples, documentation, or recommended approaches for adding SPI-based sensors to the XM3 controller firmware, we would greatly appreciate your guidance.

Thank you very much for your support.

Best regards,
Ashraf Siddiquee

Forum_Moderator

Thank you for your post, it has been approved and we will respond as soon as possible.

AustinC

Hello Ashraf,

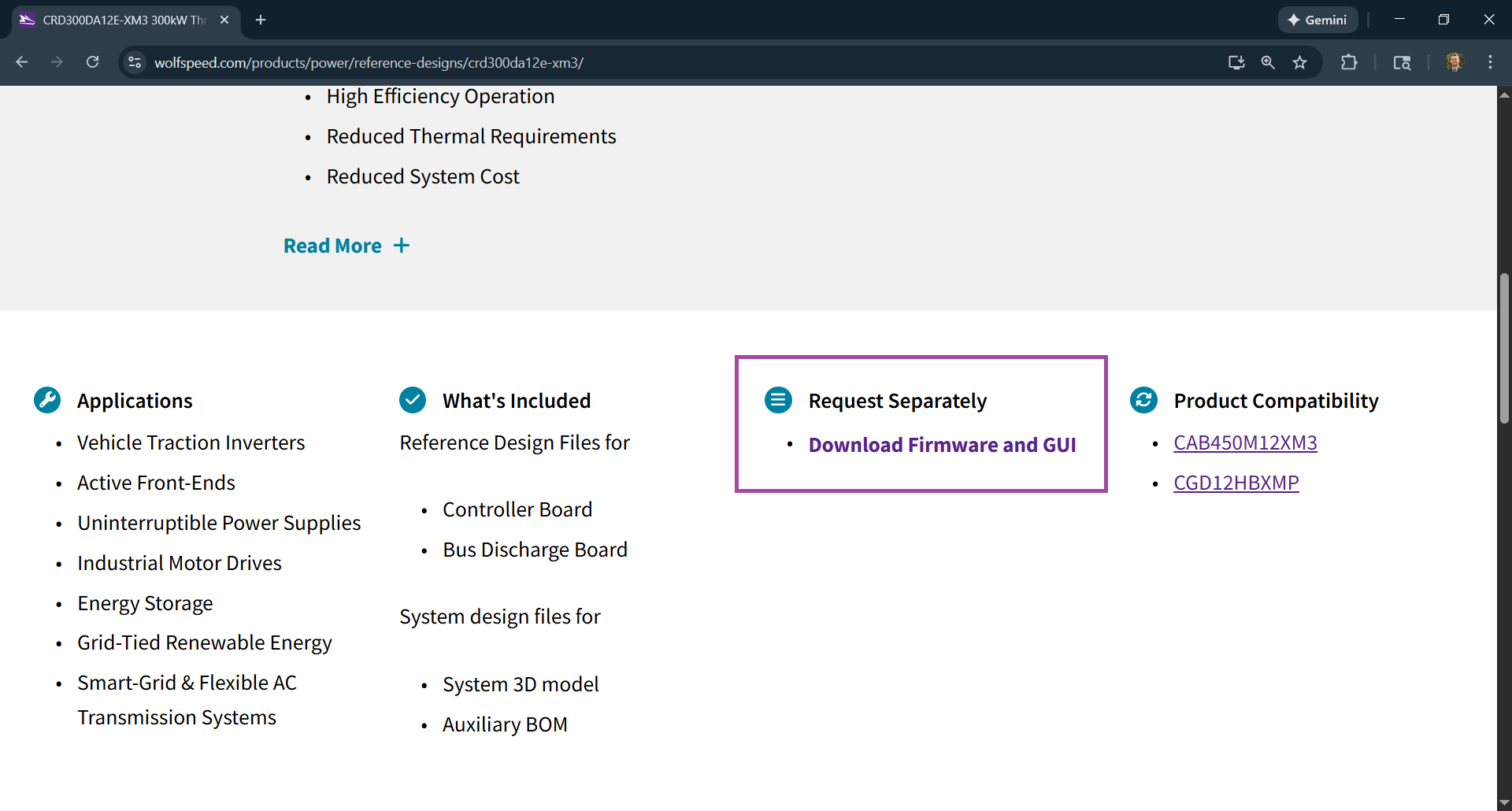

Please visit this link and download the software here:

https://forum.wolfspeed.com/home/leaving?allowTrusted=1&target=https%3A%2F%2Fwww.wolfspeed.com%2Fproducts%2Fpower%2Freference-designs%2Fcrd300da12e-xm3%2F

The CRD300DA12E-XM3 user guide walks through the procedure of updating firmware and loading it onto the TI DSP Launchpad:

https://assets.wolfspeed.com/uploads/2024/01/Wolfspeed_PRD-06975_XM3_Three-Phase_Inverter_Reference_Design_User_Guide.pdf

Best Regards,

Austin C.
