CGD1700HB2M-UNA Eval Board PCB Design file to open in Altium

Options
Harip
Harip Contributor Level 1
edited November 5 in Module Products

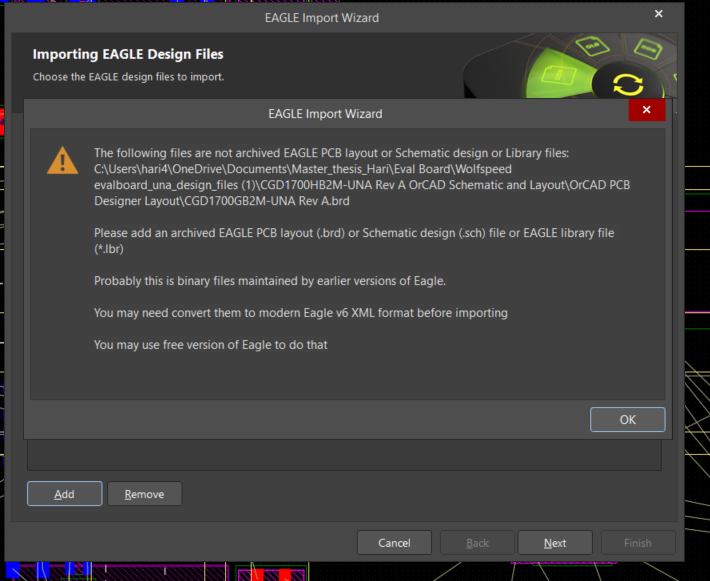

Screenshot 2025-10-21 202540.png

Hai, hope this message finds you well. I wanted to open the CGD1700HB2M-UNA Eval Board PCB Design file (CGD1700GB2M-UNA Rev A.brd)to open in Altium but it is not allowing to. I have tried to use eagle import wizard, allegro, and cadence as well but its not allowing it to. Could you please help me find a solution or provide an .pcbdoc file would be highly appreciated.

Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • AustinC
    AustinC Wolfspeed Admin - Contributor Level 4
    Options

    Hello Harip,

    I've attached the STEP file and the converted Altium design files for the CGD1700HB2M-UNA gate driver.

    CGD1700HB2M-UNA.zip

    Thanks,

    Austin C.

  • Harip
    Harip Contributor Level 1
    Options

    Hello Austin,

    Thank you for the design file 😊

    Regards

    Hariprasad

  • ChrisN
    ChrisN Wolfspeed Employee - Contributor Level 4
    Options

    Hello Hariprasad,

    I'm that this answered your question. I will close this discussion for now but if you have a follow up question, please "Start a New Discussion" and we would be glad to support you further.

    Thanks,

    Chris N.

This discussion has been closed.
