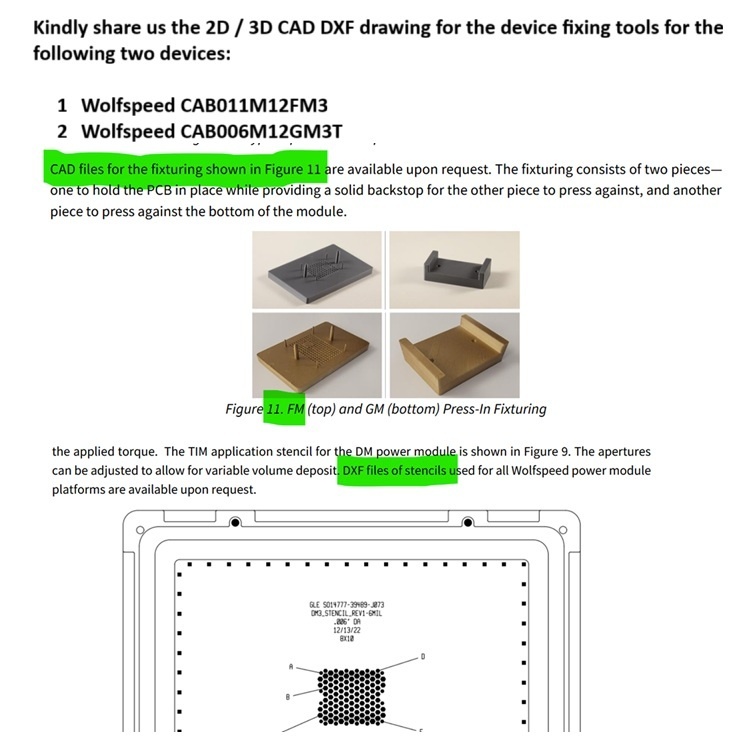

Hi, We GH Induction India pvt ltd located in Chennai. A joint venture of GH Spain. We are the OEM manufacturing induction heating machines. We use CAB011M12FM3 and CAB006M12GM3T in our PCB. To assemble the Sic module device we need fixture of top and bottom mould. Also

Wolfspeed_CAD Request.jpg

required stencil to apply heat shink paste. Kindly share us the CAD drawing for the same. Thank you

Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

    ghindia
  • ghindia
    ghindia Contributor Level 1
    Options

    Dear Sir,

    Thank you for your response. Kindly send us the required model in 2D and 3D drawings. we have to manufacture the pressing tool and heat sink applying stencil before starting the PCB and device fixing. Thank you for the support. kindly send us your mail id so that we can send the mail.

    Wolfspeed_CAD Request.jpg

  • CFlack
    CFlack Wolfspeed Employee - Contributor Level 2
    Options

    ghindia,

    The requested files have been sent to the email linked to your forum account. Please let us know if you have further questions. Thanks!

    ghindia
  • ghindia
    ghindia Contributor Level 1
    Options

    Hi,

    Yes, we have received the drawings from Calvin Flack. Thank you for the support.

This discussion has been closed.
