CRD25BDA6512N Choke/Inductor Selection

Options
jpeverill
jpeverill Contributor Level 1
edited 3:07AM in Discrete Products

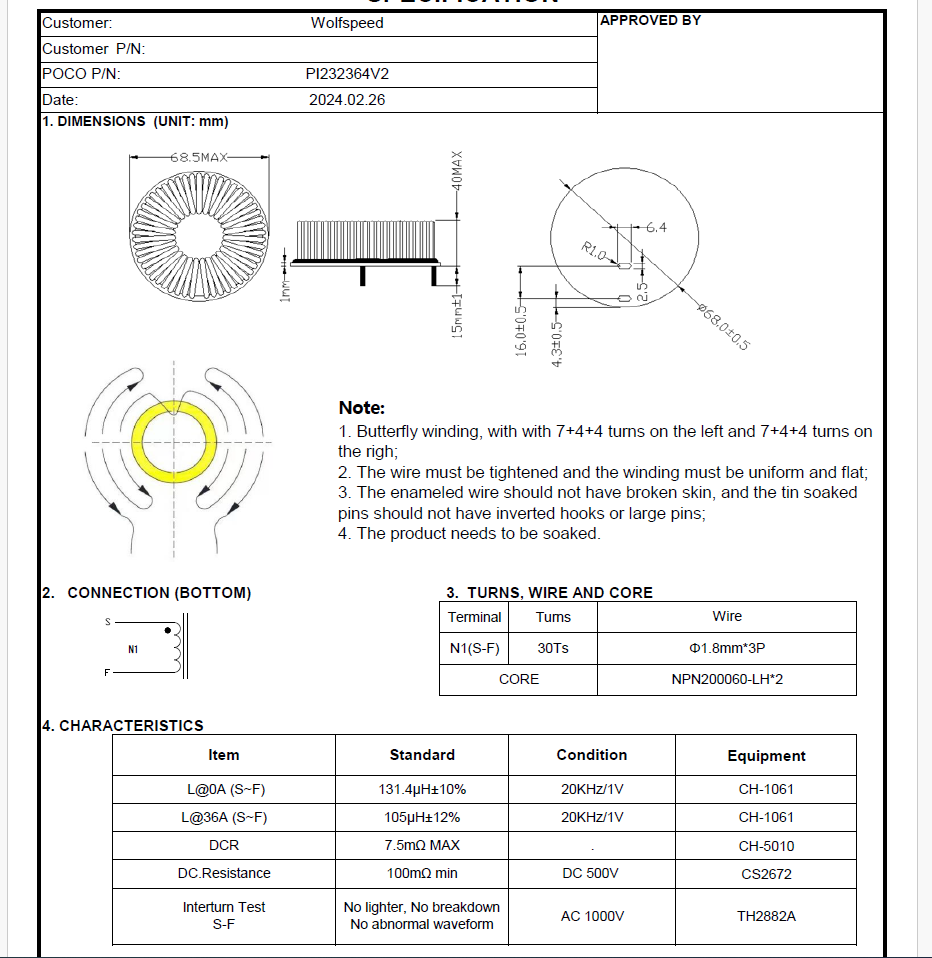

I am building some CRD25BDA6512N for evaluation to start off a new design. The line choke components (L1_1, L1_2, L1_3) and (L5_1, L5_2, L5_3) are not specified. They appear to be stacked on the same footprint? I'm not clear if these are two different parts intended or two different chokes wound on the same core? Are there specifications for what was used to build the reference boards? The BOM just says "Line Choke, 125uH, 100kHz, 6.5mOhm DCR" and "Inductor, 131uH, 20kHz, 7.5mOhm DCR". I am aware that there is another EMI filter that is referenced and suggested for production designs but I would like to start with just building the reference design.

Thank you!
