Potential Error in Thermal Model

Options
Emma
Emma Contributor Level 2
edited December 3 in Module Products

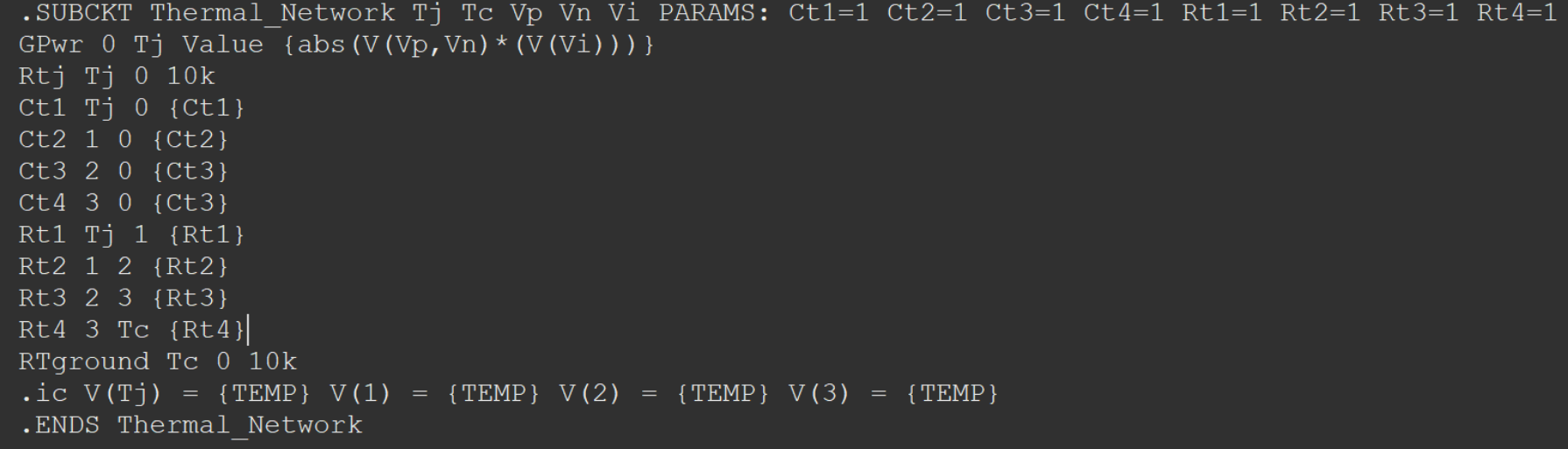

In the thermal network subcircuit model of the CAB016M12FM3 half-bridge module PSpice model provided by your company, as shown in the figure. Is there an error in Ct4 3 0 {Ct3}? Should it be corrected to Ct4 3 0 {Ct4}?


Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • BlakeNelson
    BlakeNelson Wolfspeed Employee - Contributor Level 3
    Options

    Hi Emma,

    That indeed is an error in our Pspice model. I've gone ahead attached the corrected file, and we will fix the issue on our web download as soon as possible.

    CAB016M12FM3.zip

    Thank you for your feedback!

    Blake

This discussion has been closed.
