C2M01600120D output curve simulation is inconsistent with manual

Options
LYH
LYH Contributor Level 1
in Discrete Products

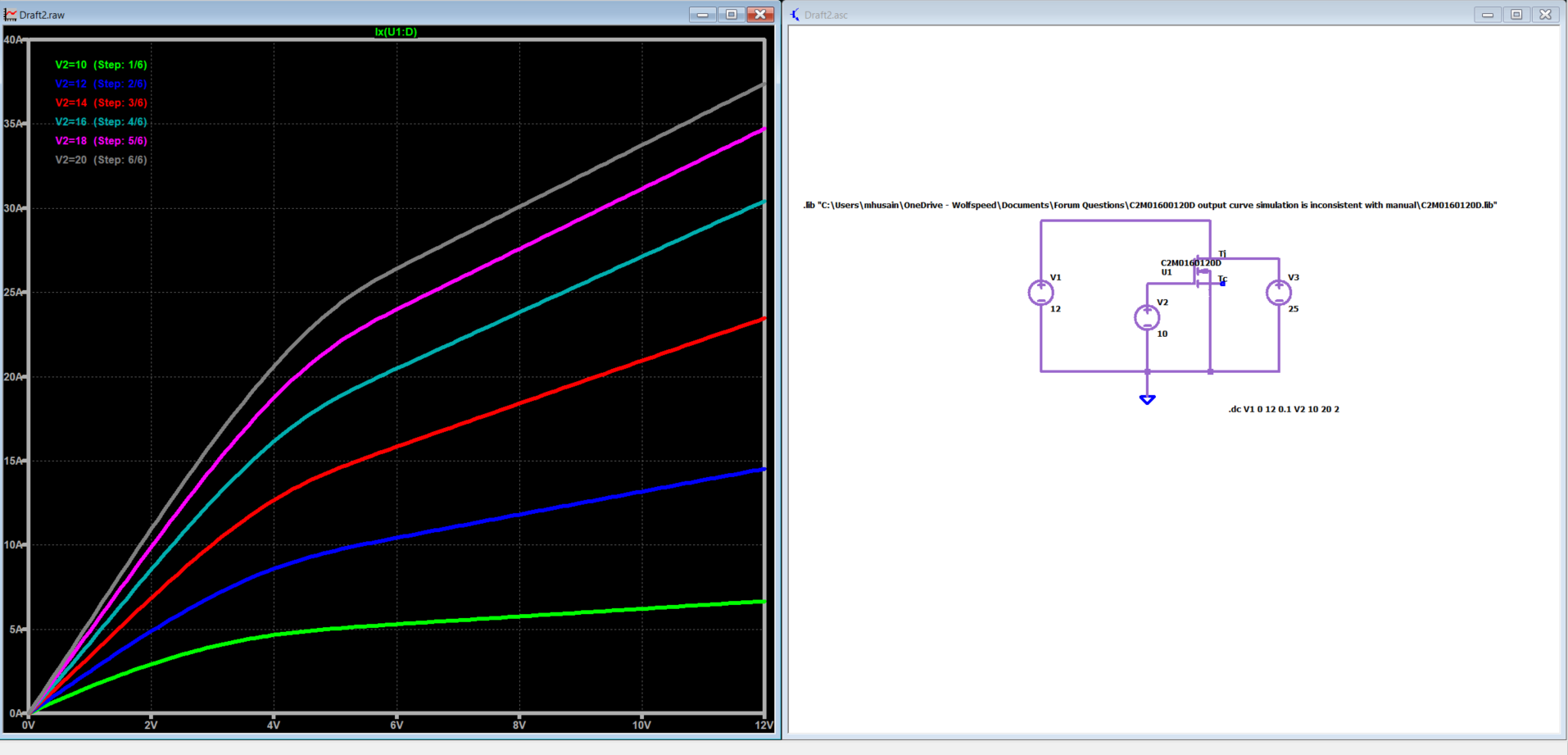

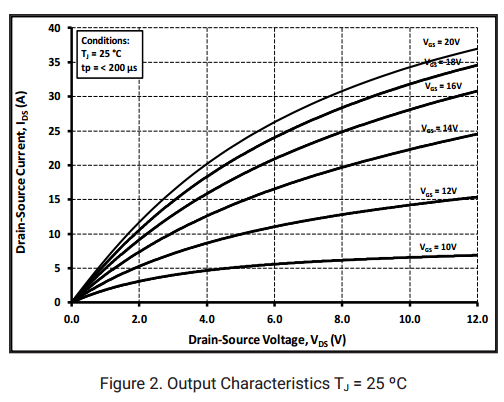

Why is the output curve obtained by using LTspice's scanning command significantly different from the manual


Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • Mhusain
    Mhusain Wolfspeed Employee - Contributor Level 2
    Options

    Hello,

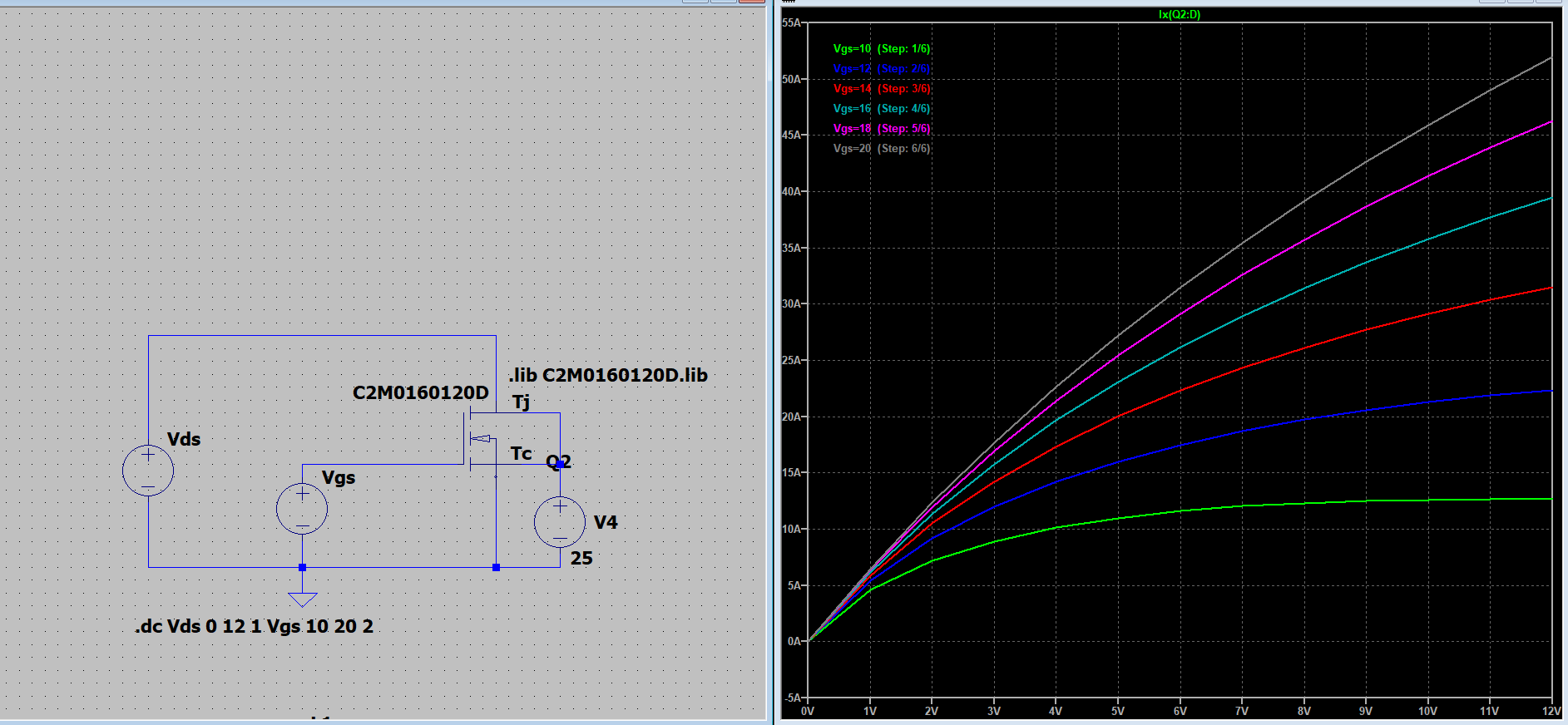

    Thank you for bringing this to our attention. I have attached the updated model along with its output characterization simulation at 25C in LTspice. Please feel free to reach out if you have any further questions or need additional assistance.

    C2M0160120D.lib

    Thanks
