request for the spice code for the below compoants C3M0040120K C3M0021120K

Options
veeranjaneyulu
veeranjaneyulu Contributor Level 1
edited May 12 in General

request for the spice code for the below compoants C3M0040120K C3M0021120KD

Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • TBhatia
    TBhatia Wolfspeed Admin - Contributor Level 5
    edited April 26
    Options

    The SPICE models for C3M0021120K and C3M0040120K are downloadable from

    https://www.wolfspeed.com/tools-and-support/power/ltspice-and-plecs-models/

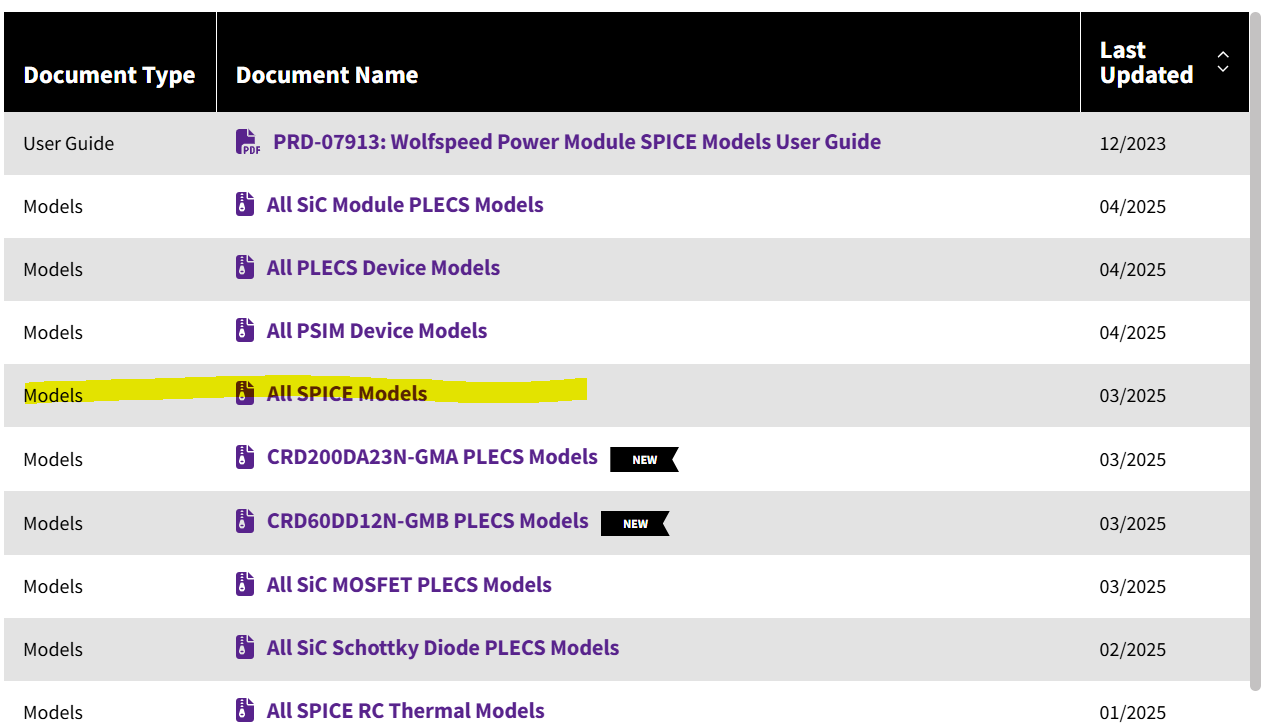

    Under "All SPICE models"


    Please let me know if you experience any trouble downloading and using them. Thank you!

  • TBhatia
    TBhatia Wolfspeed Admin - Contributor Level 5
    Options

    Hi, I hope that this answered your question. I will close this discussion for now but if you have a follow up question, please "Start a New Discussion" and we would be glad to support you further.

This discussion has been closed.
