C3M0900170D creepage distance

Options
David2023
David2023 Contributor Level 1
in Discrete Products

Hi

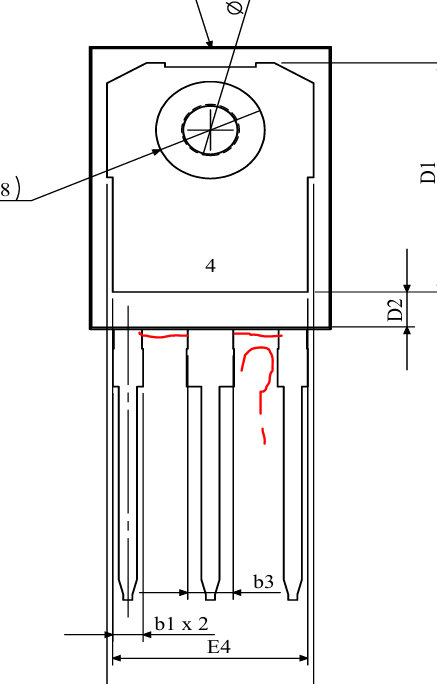

I have a stupid quetion. Whether the creepage distance of C3M0900170D is enough? what can I do to increase the creepage distance between drain and source ? thanks.


Tagged:

Comments

  • Forum_Moderator
    Forum_Moderator Wolfspeed Employee - Contributor Level 5
    Options

    Thank you for your post, it has been approved and we will respond as soon as possible.

  • BGochis
    BGochis Wolfspeed Employee - Contributor Level 2
    Options

    Hello

    The distance between the drain and source pins has a worst case value of 2.55mm based on the package design. The easiest way to increase this distance or remove it entirely would be to add isolating "sleeves" or shrink tubing on the drain-source leads. This is common practice in power electronics assembly

    Thanks

  • David2023
    David2023 Contributor Level 1
    Options

    Thanks BGochis.
